Nanoleaf Blocks - Combo Starter Kit

Article number:	N8100K05-5CL
Availability:	Out of stock
Available in store:	Check availability

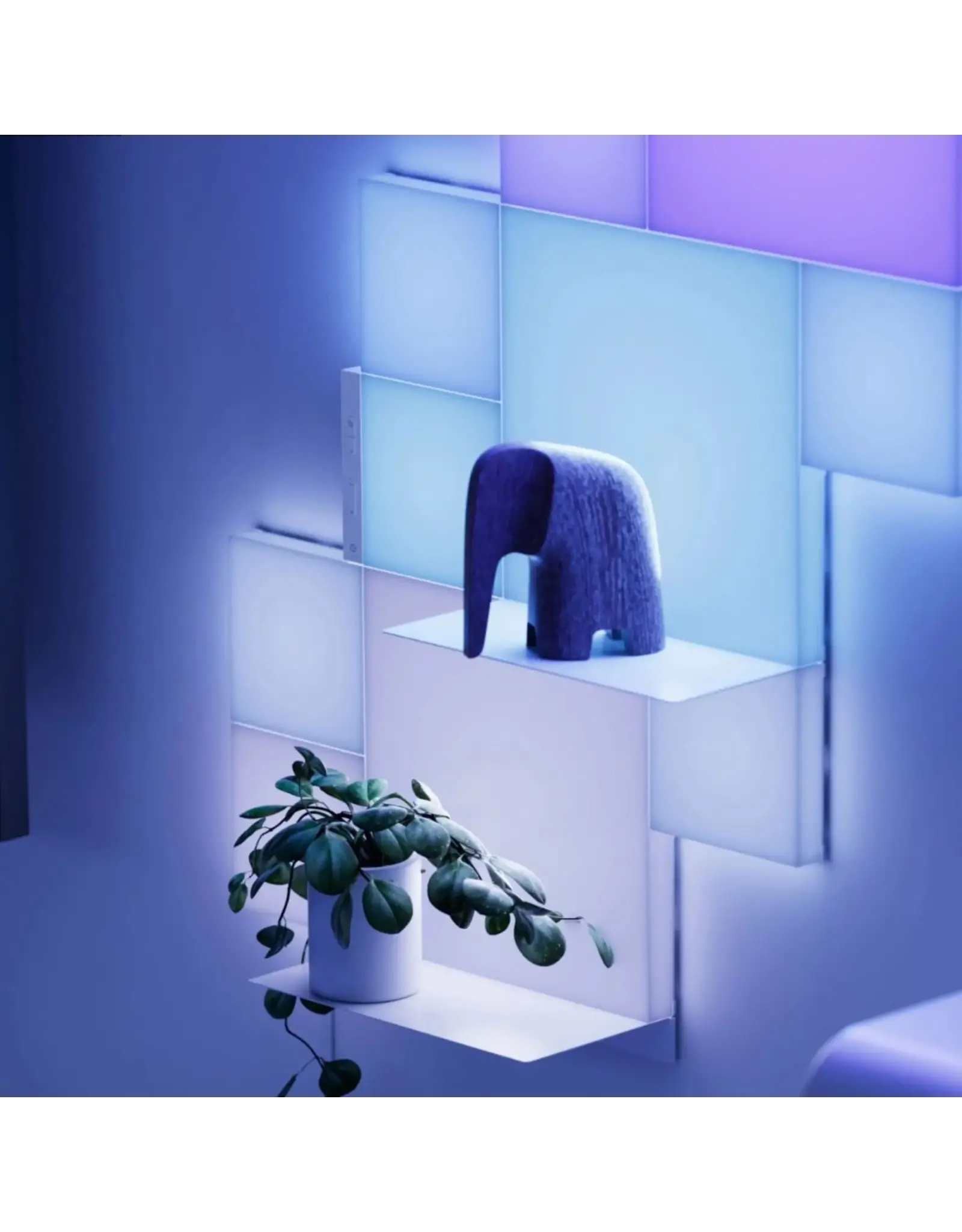

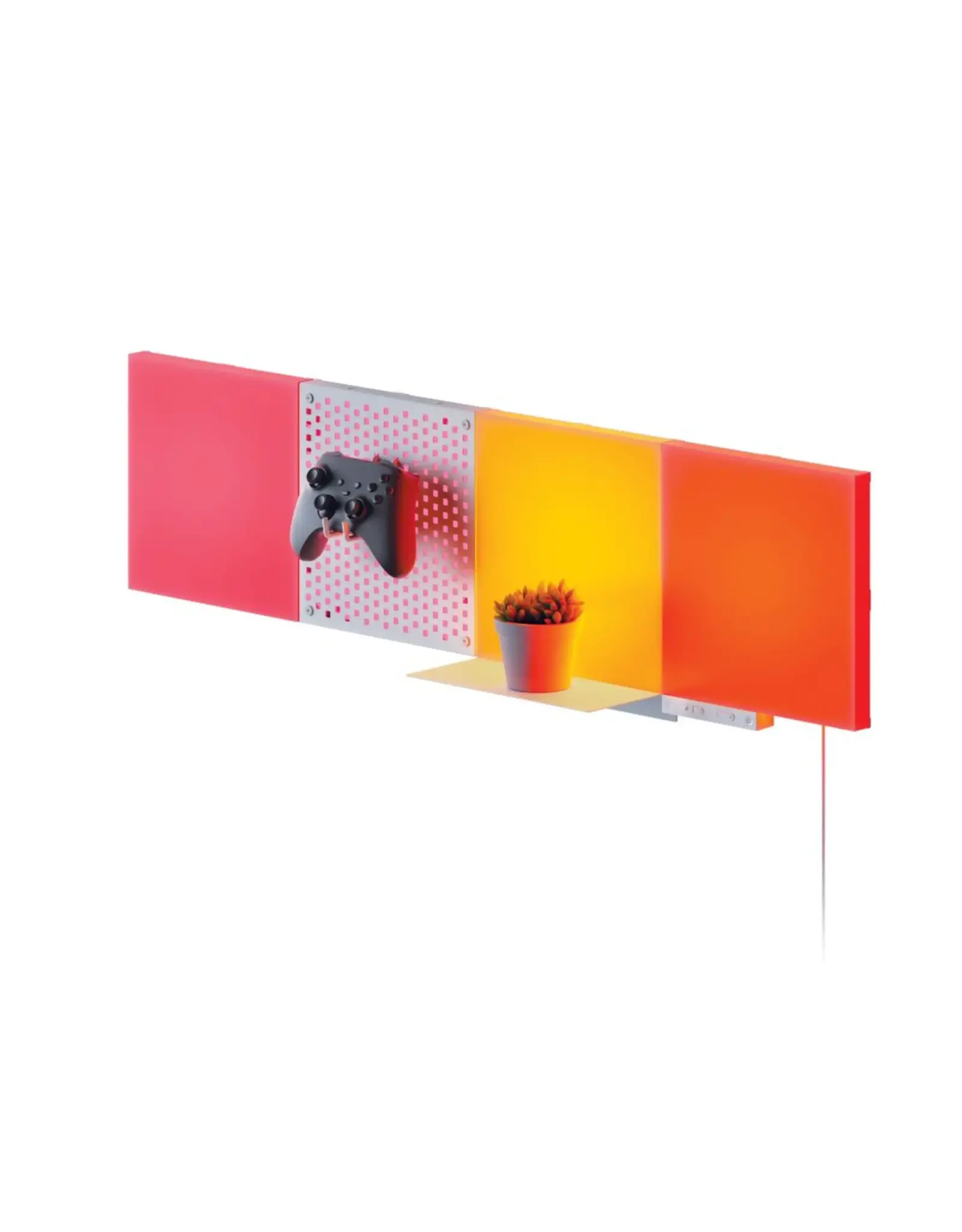

Build your lighting display YOUR way with Nanoleaf Blocks! Create your one-of-a-kind illuminated display with different panel styles and add-ons. Customise with colours and lighting effects, and utilise the new Shelves and Pegboards to show off your favourite items that make you YOU - like your gaming accessories, collectibles, plants, and more!

With modular light panels, pegboards, and shelves that can be mixed and matched, you have total design freedom to create a statement lighting piece that doubles as a versatile display and storage solution.

Mix and match from 5 Blocks styles for a lighting layout that's totally unique to you. Take customisation one step further by creating your own colour palettes and animated Scenes.

Sleek square panels with even edge-to-edge lighting give you complete creative flexibility to go ultra minimalistic or take it to the max.

Note: This kit contains components that must be screw-mounted onto the wall.

• Edge to edge illumination
• Includes Light Pegboard & Shelf for display and organisation
• App, voice, manual control
• Shelf weight limit: 1.5kg
• Pegboard weight limit: 3kg

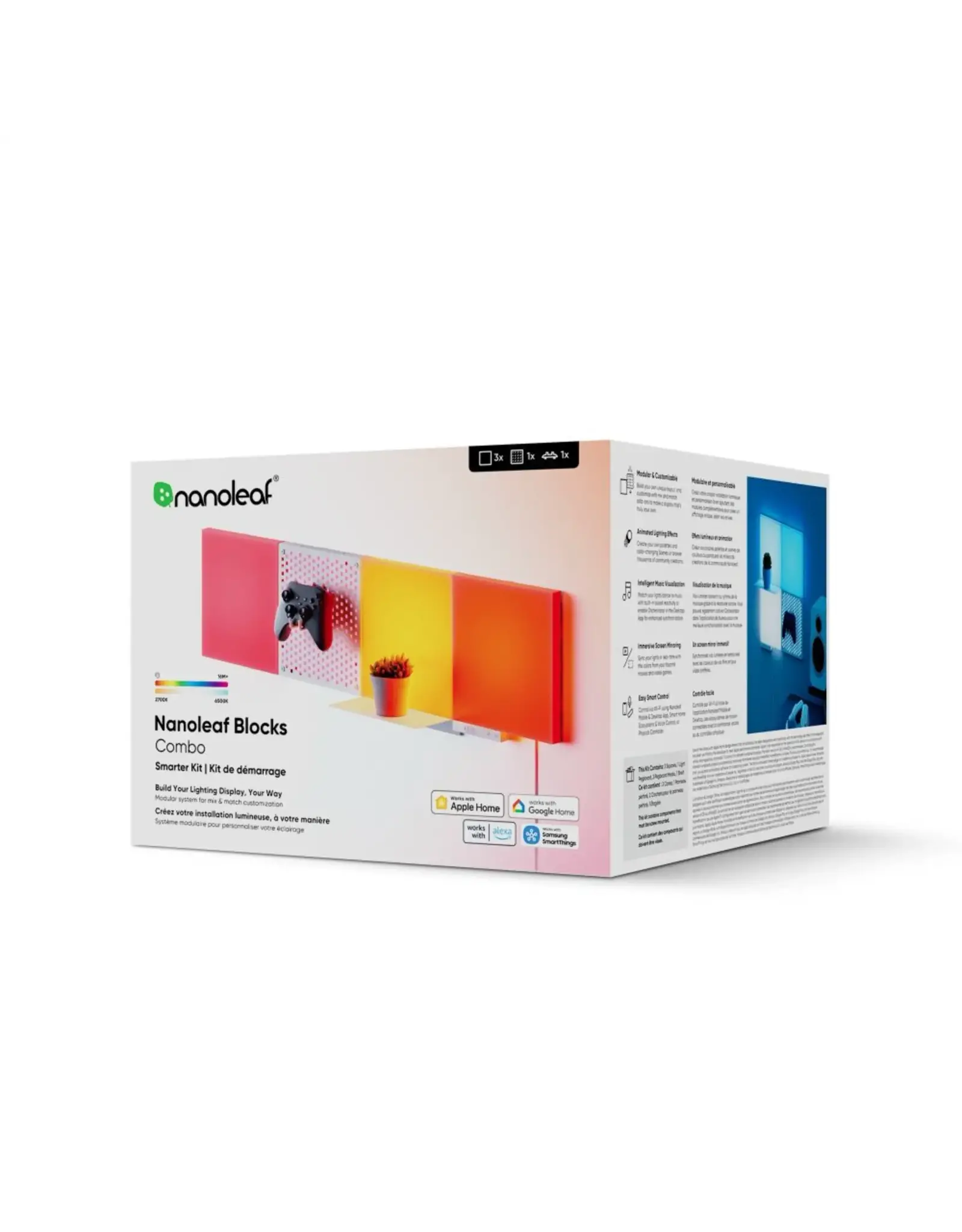

What's in the box:

• 3 x Squares
• 1 x Light Pegboard
• 2 x Pegboard Hooks
• 1 x Shelf
• 1 x Shelf Cover
• 1 x Controller
• Mounting Plates & Tapes
• Screws
• Rigid Linkers
• 100VAC-240VAV Power Supply

Dimensions

• Squares - 231*231*29 mm
• Small Squares - 115.5*115.5*29 mm
• Textured Squares - 231*231*29 mm
• Light Pegboard - 231*231*29 mm
• Pegboard Hook - 79.5*76.6*5.5 mm
• Shelves - 229.6 x 70 x 129 mm
• Shelf Cover - φ5.5*79.7*76.6 mm
• Cable Length - 2m
• Controller - 230*35*29 mm

Weight

• Squares (Per Panel) - 550g
• Small Squares (Per Panel) - 135g
• Textured Squares (Per Panel) - 492g
• Light Pegboard (Per Panel) - 900g
• Pegboard Hook - 26g
• Shelf - 227.5g
• Shelf Cover - 26g
• PSU - 205g
• Controller - 40g
• Shelf Load Bearing Capacity - 1.5kg
• Light Pegboard Load Bearing Capacity - 3kg

Features

• Screen Mirror - Yes
• Rhythm Music Visualiser - Yes
• Sync+ - Yes
• Connect+ - Yes, panels can be connected with other Nanoleaf Blocks & Nanoleaf Shapes
• Touch Control - No

General

• Luminous Per Display
  • Squares: 320 lumens
  • Small Squares: 70 lumens
  • Textured Squares: 230 lumens
  • Light Pegboard: 62 lumens
• Communication Protocol - WiFi (2.4 GHz b/g/n)
  • NOTE: 5 GHz networks are not compatible with Nanoleaf products.
• Dimmability - Yes (via Nanoleaf App, Voice, Controller)
• Mounting Type
  • Squares: Double-sided mounting tape (included)
  • Small Squares: Double-sided mounting tape (included)
  • Textured Squares: Double-sided mounting tape (included)
  • Light Pegboard: Must be screw mounted (screws provided)
  • Shelves: Must be screw mounted (screws provided)
• The Nanoleaf App - Control via Nanoleaf App (Android & iOS) for mobile/tablet or The Nanoleaf Desktop App (Windows & Mac).
• Thread Compatibility - Can act as a Thread Border Router with a future firmware update
• Compabitility - Apple Home, Amazon Alexa, Google Home, SmartThings, Razer Chroma

Colour

• Colour Temperature -1200K-6500K
• Colour Channel Configuration - RGBW
• Max Colours - More than 16 million
• Colour Rendering Index (CRI) - 80

Power

• Voltage100 - 240V AC
• Max Panels per Power Supply (42W)
  • Squares: 17
  • Light Pegboard: 17
  • Textured Squares: 17
  • Small Squares: 60
• Max Panels per Controller - 500
• Individual Power Consumption Values - Bigger layouts may require additional Power Supply Units. Use the following values to calculate the maximum number of panels per PSU:
  • Squares: 3W
  • Light Pegboard: 3W
  • Textured Squares: 3W
  • Small Squares: 0.8W

Use environment

• Lifetime - 25,000 hrs
• Operating temperature range - 0℃ to 40℃
• Usage Scenario - Indoor
• IP Rating - IP20
